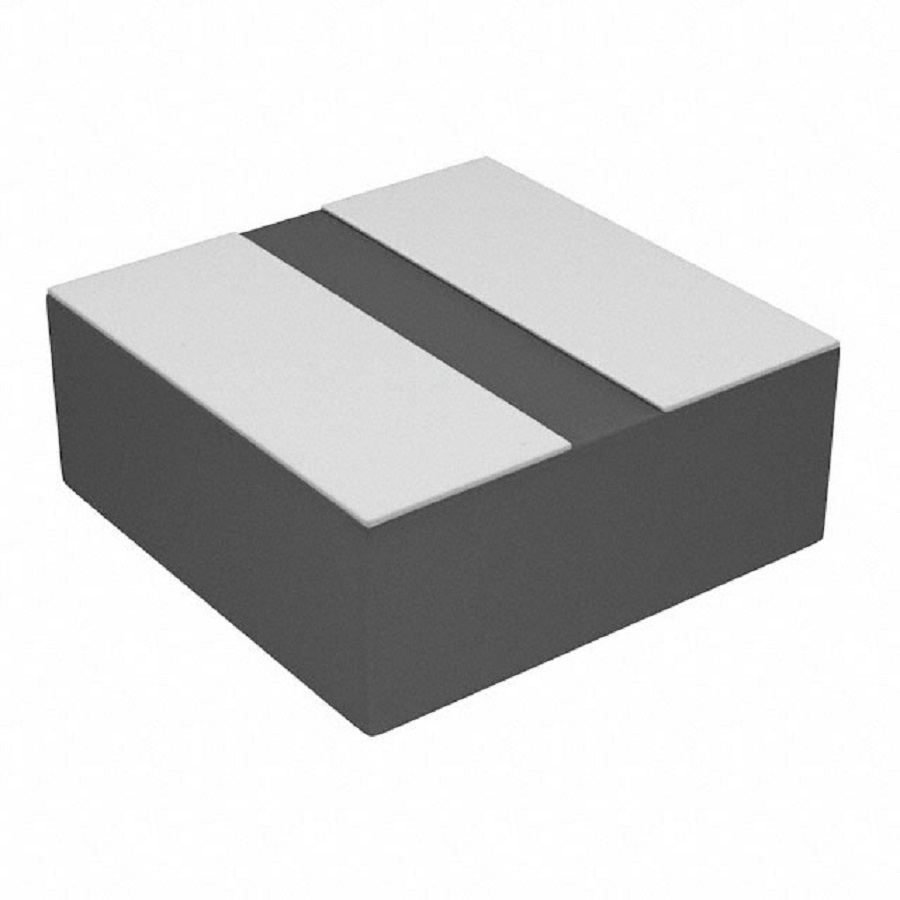

74438336100
Manufacturer:
Wurth Electronics
Mfr.Part #:
74438336100
Datasheet:
Description:
Fixed Inductors 1212(3030 Metric) SMD/SMT 10 µH 20 % 1.2 A 322 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 2.01 mm |
| Length | 2.9972 mm |
| Width | 2.9972 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1212 |
| Case Code (Metric) | 3030 |
| Number of Pins | 2 |
| Height | 2 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 18 MHz |
| Type | Wirewound |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 322 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Ambient Temperature Range High | 85 °C |
| Inductance | 10 µH |
| Core Material | Composite, Ferrite, Metal |
| RMS Current (Irms) | 1.2 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.2 A |
| Series Resistance | 322 mΩ |
| Saturation Current | 2.35 A |
Stock: 140
Distributors
pcbx
pcbxUnit Price$1.75502
Ext.Price$1.75502
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.75502 | $1.75502 |
| 10 | $1.49981 | $14.99810 |
| 25 | $1.38272 | $34.56800 |
| 50 | $1.27477 | $63.73850 |
| 100 | $1.17524 | $117.52400 |
